Introduction: Why Electrical Insulation is More Important Than Ever
Electrical insulation is the core of the safe operation of modern power systems, preventing current leakage and isolating live conductors. Currently, the industry has higher requirements for insulation materials, driven by higher voltages, equipment miniaturization, and harsher operating environments.
There is a misconception in the industry about "universal insulation materials." Different scenarios require significantly different insulation materials. This article aims to clarify the definition of "highest quality electrical insulation materials," compare commonly used core materials, and help practitioners make accurate selections.
There is a misconception in the industry about "universal insulation materials." In reality, different power systems, cable types, and operating environments have significantly different requirements for insulation materials. This article aims to clarify the definition of "highest quality electrical insulation materials," compare commonly used core materials, and help practitioners and purchasers make accurate selections.
What Does "Electrical Insulation" Really Mean?
Simply put, electrical insulation materials are materials that can prevent current from passing through and reduce current leakage. Their core function is to isolate live and non-live conductors, ensuring the safe operation of the power system. Determining the insulation performance of a material cannot rely solely on a qualitative judgment of whether it is "insulating" or not; it requires considering the following four key technical parameters:
1. Dielectric strength: The maximum electric field strength a material can withstand. Exceeding this strength will cause breakdown and loss of insulation. The unit is usually kV/mm. The higher the value, the stronger the withstand voltage.
2. Volume resistivity: Measures the material's ability to prevent current from flowing through it. The higher the value, the better the insulation performance. It is usually measured in Ω·m.
3. Surface resistivity: Measures the material's ability to prevent current leakage at its surface. It is particularly useful in humid and dusty environments to prevent surface creepage.
4. Dielectric constant: Reflects the material's ability to store electrical charge. The lower the dielectric constant, the lower the energy loss, making it more suitable for high-frequency and high-voltage applications.
It is important to note that insulation parameters measured in the laboratory do not necessarily reflect performance in actual applications. In real-world operating scenarios, insulating materials are affected by various factors, making long-term stability crucial. For example, high temperatures accelerate material aging, humidity reduces insulation resistance, and mechanical stress can cause insulation layer damage. These factors directly impact the lifespan and safety performance of insulating materials.
Theoretical King: Materials with Optimal Insulation Performance
Vacuum – Theoretically Perfect Insulator
Under ideal conditions, a vacuum has infinite resistivity and no free charges to conduct current, making it theoretically the best insulating material. It does not break down and is unaffected by environmental factors such as temperature and humidity, making it widely used in high-voltage testing in laboratories.
However, for cables and actual power installation scenarios, a vacuum is completely impractical. Maintaining a vacuum environment requires complex sealing equipment, which is extremely costly. Furthermore, cables need to be flexible and layable, and a vacuum environment cannot meet the installation and usage requirements of cables. Therefore, it exists only in theoretical research and special laboratory scenarios and cannot be applied to actual power systems.
Air and Gases (Sulfur Hexafluoride, Nitrogen)
Air is the most common natural insulating material, possessing excellent insulating properties, and is extremely low in cost and readily available. Besides air, sulfur hexafluoride (SF₆) and nitrogen are also commonly used insulating gases. Sulfur hexafluoride, in particular, has a dielectric strength 2-3 times that of air, offering superior insulation performance.
These gases are primarily used in fixed equipment such as switchgear and substations—e.g., high-voltage circuit breakers and gas-insulated switchgear (GIS)—achieving insulation and arc extinguishing through a sealed gas environment. However, they have significant limitations in cable systems: the gases require a sealed environment, making them unsuitable for the flexible laying requirements of cables, and the insulation performance is instantly lost if the seal is broken. Therefore, they are unsuitable as cable insulation materials.

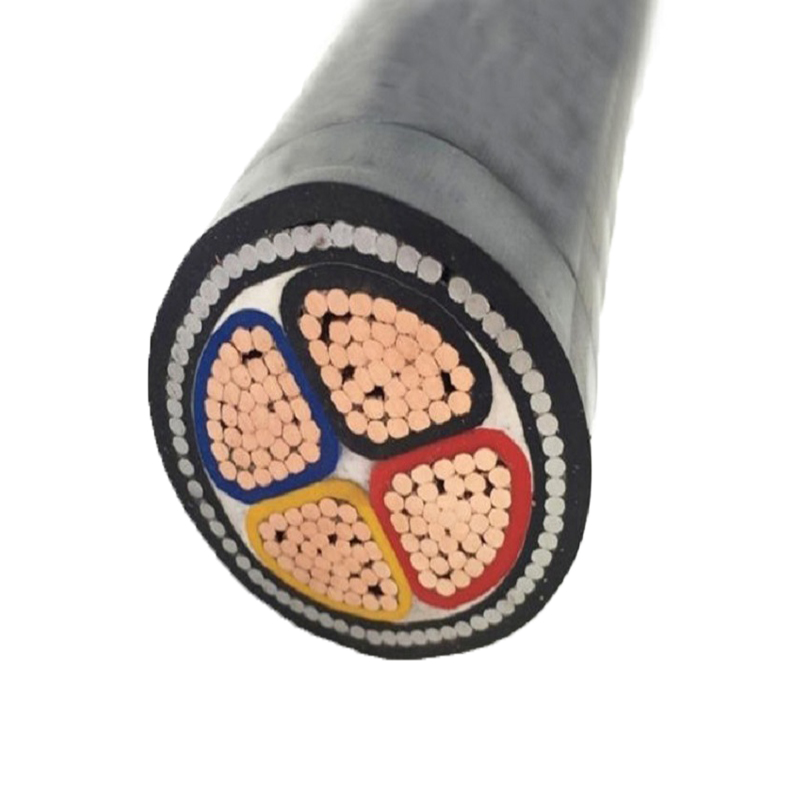

Solid Insulation Materials: The Core Competitor in Practical Applications.jpg)
For cables and most electrical equipment, solid insulation materials are the mainstream in practical applications—they possess good mechanical strength, processability, adaptability to different installation scenarios, and stable insulation performance, serving as the core carrier connecting theoretical performance with practical applications. The following are some of the most commonly used solid insulating materials in the industry:
Polytetrafluoroethylene (PTFE, commonly known as Teflon®)
PTFE is a solid material with extremely high insulating properties, possessing very high dielectric strength and volume resistivity. It also boasts excellent high-temperature resistance and chemical corrosion resistance, maintaining stable insulation performance even at extreme temperatures ranging from -200℃ to 260℃, and does not react with most chemicals.
Its typical applications are concentrated in fields with extremely high requirements for insulation performance and environmental adaptability: such as cables for aerospace equipment, high-frequency communication cables, and corrosion-resistant cables in the chemical industry, especially suitable for special scenarios requiring resistance to high temperatures, strong acids, and strong alkalis.
However, the commercial application of PTFE has significant limitations: First, its cost is extremely high, far exceeding that of ordinary insulating materials, preventing its large-scale application in conventional cables; second, it is difficult to process, not easy to mold, and difficult to adapt to the production of cables with complex specifications, therefore it is only used in high-end, special-demand scenarios.
Polyethylene (PE)
Polyethylene is a cost-effective general-purpose insulating material with a low dielectric constant, low energy loss, stable insulation performance, good mechanical toughness, easy processing and molding, and relatively low cost.
Its common applications are mainly in low- and medium-voltage fields, such as communication cables, low-voltage power cables, and household wiring. It is one of the most commonly used insulating materials in daily life and general industrial scenarios. Its advantages lie in balancing insulation performance and economy, making it suitable for large-scale mass production and meeting the needs of most low- and medium-voltage power transmission.
Cross-linked Polyethylene (XLPE)
XLPE is a reinforced version of polyethylene. Through chemical or physical methods, polyethylene molecules undergo a cross-linking reaction to form a three-dimensional network structure, thereby significantly improving the material's performance. It is currently the most widely used insulating material in the power cable industry.
Its core advantages are reflected in three aspects: First, significantly improved dielectric strength, enabling it to withstand higher voltages; second, excellent high-temperature resistance, with a long-term operating temperature up to 90℃ and a short-circuit withstand temperature up to 130℃, exhibiting thermal stability far exceeding ordinary PE; third, long service life, strong anti-aging and cracking capabilities, and adaptability to complex operating environments.
XLPE's application scenarios cover core areas of medium and high voltage power transmission: such as medium-voltage power cables, high-voltage transmission cables, and underground cables. Whether for urban power grid upgrades, long-distance high-voltage transmission, or power transmission in industrial plants, XLPE is the preferred insulation material.
The reason XLPE has become an industry standard, rather than merely a "performance king" in the laboratory, lies in its achievement of a "balance between performance and practicality"—possessing insulation performance approaching that of high-end materials while also having good processability, economy, and stability, adapting to the actual needs of most power cables. Through long-term market validation, its reliability has been widely recognized by the industry.
Polyvinyl Chloride (PVC)
PVC is a widely used general-purpose insulating material. Its insulation performance is moderate, with dielectric strength and resistivity slightly lower than PE and XLPE, but it possesses outstanding mechanical strength and flame-retardant properties, is not easily combustible, and has extremely low cost and mature processing technology.
Its main applications are in the construction and low-voltage fields: such as lighting wires, household socket wires, and low-voltage control cables in buildings. Its core advantages are high cost-effectiveness and good flame retardancy, meeting building fire safety requirements, making it one of the most commonly used insulating materials in civil and general building applications.
Comparison of Insulation Materials: Trade-offs between Performance and Practicality
Theoretically, the order of insulation performance is: Vacuum > PTFE > SF₆ and other gases > XLPE > PE > PVC. However, in practical applications, "most insulating" does not necessarily mean "most suitable." We can make a simple comparison of commonly used materials from two dimensions: performance and practicality. In terms of electrical insulation performance, PTFE and vacuum insulation are far superior, but their practicality is extremely poor; air and gas insulation performance is excellent, but only suitable for stationary equipment; among solid materials, XLPE has the best overall insulation performance, while PE and PVC are more economical.
However, the core factors influencing material selection go far beyond insulation performance, including:
Voltage rating: PE and PVC are suitable for low-voltage applications; XLPE is essential for medium- and high-voltage applications; PTFE can be considered for special high-voltage applications;
Operating temperature: PTFE and XLPE are preferred for high-temperature environments; PE and PVC are sufficient for conventional environments;
Installation environment: XLPE (water-resistant and anti-aging) is preferred for underground and humid environments; PVC (flame-retardant) is preferred for building applications; PTFE is preferred for special corrosive environments;
Cost and availability: PE, PVC, and XLPE are preferred for large-scale applications; PTFE can be considered for high-end special needs.
This is why the "most insulating" material is often not the best choice—for example, vacuum insulation and PTFE, while offering the strongest insulation performance, are expensive and impractical, failing to meet the production and usage requirements of conventional cables. While XLPE may not theoretically offer the best insulation, it achieves a perfect balance between insulation performance, practicality, and economy, making it the industry mainstream.
Why does XLPE dominate the modern power cable market?
In the modern power cable industry, XLPE has become the dominant material primarily due to its versatility—a perfect balance of insulation performance, mechanical properties, practicality, and economy, making it suitable for the vast majority of power transmission scenarios. Its specific advantages are reflected in the following points:
Balanced Comprehensive Performance: XLPE not only possesses excellent insulation properties such as high dielectric strength and high resistivity, but also good mechanical toughness, being flexible, tensile-resistant, and crack-resistant, adapting to the installation requirements of cable laying and bending. Simultaneously, it exhibits strong thermal stability, outstanding anti-aging capabilities, and a service life exceeding 40 years.
Wide Application Range: Whether for underground laying, overhead installation, long-distance high-voltage transmission, or urban power distribution network upgrades, XLPE performs reliably, especially suitable for underground cables—its excellent water resistance effectively prevents insulation failure caused by moisture penetration.
Compliant with International Standards:XLPE's production and performance specifications fully comply with authoritative international standards such as IEC (International Electrotechnical Commission) and IEEE (Institute of Electrical and Electronics Engineers), and also meet relevant domestic power industry regulations. It boasts strong compatibility and can be adapted to power systems worldwide.
Proven Reliability: For many years, XLPE has been widely used in various power projects globally, from high-voltage transmission lines to urban distribution networks, from industrial plants to residential communities. Its stability and reliability have been thoroughly verified, with very few safety incidents caused by insulation failure, making it a recognized "standard insulation material" in the power industry.
Common Misconceptions in Selecting Insulation Materials
In actual procurement, many purchasers and practitioners easily fall into misconceptions, leading to the selection of insulation materials that do not meet actual needs. This either increases costs or poses safety hazards. The four main misconceptions are:
Focusing solely on dielectric strength: One-sidedly pursuing the "highest dielectric strength" while ignoring the actual operating environment and other performance characteristics—for example, some scenarios require flame retardancy and water resistance. Blindly choosing high-dielectric-strength PTFE not only significantly increases costs but may also lead to insulation damage due to insufficient mechanical properties;
Ignoring installation and aging conditions: Failing to consider the cable's installation environment (e.g., underground, humid, high-temperature) and long-term aging issues. For example, choosing PE cables in humid underground environments can easily lead to decreased insulation performance due to moisture penetration, shortening service life;
Over-standardization, increasing unnecessary costs: Blindly choosing high-voltage XLPE cables or high-end materials like PTFE for low-voltage scenarios, resulting in a significant increase in costs. In reality, ordinary PE and PVC are sufficient;
Ignoring local standards and climate: Power standards and climate conditions vary across regions. For example, hot and rainy areas require stronger anti-aging and water-resistant properties. Choosing ordinary PVC cables can easily lead to insulation aging and breakdown. Furthermore, ignoring local industry standards may result in products failing acceptance tests.
Conclusion: What exactly constitutes the "best quality electrical insulation material"?
The best quality electrical insulation material depends primarily on the specific application scenario.
Theoretically, vacuum and PTFE offer the best insulation performance, but their practicality is extremely poor. In practical applications, XLPE, balancing insulation, mechanical properties, practicality, and economy, dominates the medium and high voltage power cable market. PE and PVC occupy the low-voltage civilian sector, while air and gas are suitable for stationary equipment.
Core principle for purchasers: Do not blindly pursue "best insulation." Selection should be based on voltage level, operating environment, and cost budget. Laboratory data is for reference only; stability, practicality, and compliance in actual applications are key.
