What is OPGW Optical Cable?

Introduction: Core Infrastructure in the Smart Grid Era
With the accelerated global energy transition, the demand for high-speed communication and safe operation in smart grids is becoming increasingly urgent. At the top of high-voltage transmission lines, a special optical cable integrating dual functions is silently supporting the stable operation of the energy network – this is the OPGW optical cable (optical fiber composite overhead ground wire). It breaks down the traditional boundaries between power transmission and communication transmission, perfectly integrating the "safety guarantee" of lightning protection grounding with the "information channel" of high-speed data, becoming an indispensable core component of modern power infrastructure. From real-time monitoring of remote wind farms to intelligent dispatching of cross-regional power grids, OPGW optical cables are driving the power system towards a smarter, more reliable, and more efficient direction with their unique technological advantages.

Understanding OPGW Optical Cables: Definition and Core Characteristics
What is an OPGW optical cable? OPGW stands for Optical Ground Wire. As the name suggests, it is an overhead ground wire that integrates optical fiber units within a metal structure. Unlike traditional ground wires, OPGW cables do not simply serve as lightning protection grounding; instead, through ingenious structural design, they simultaneously provide safety protection for power lines and build a high-speed, stable optical fiber communication network. These cables are typically installed at the top of high-voltage transmission towers, acting as both a "shield" protecting transmission lines from lightning strikes and an "information artery" carrying data transmissions for grid dispatching and equipment monitoring, achieving "one-time installation, double benefits" infrastructure optimization.
Core Structure and Design Principles

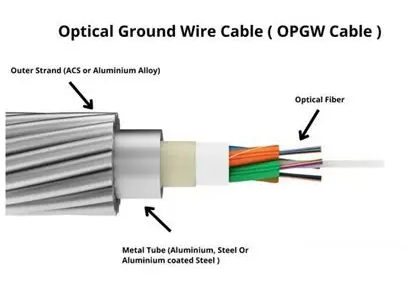

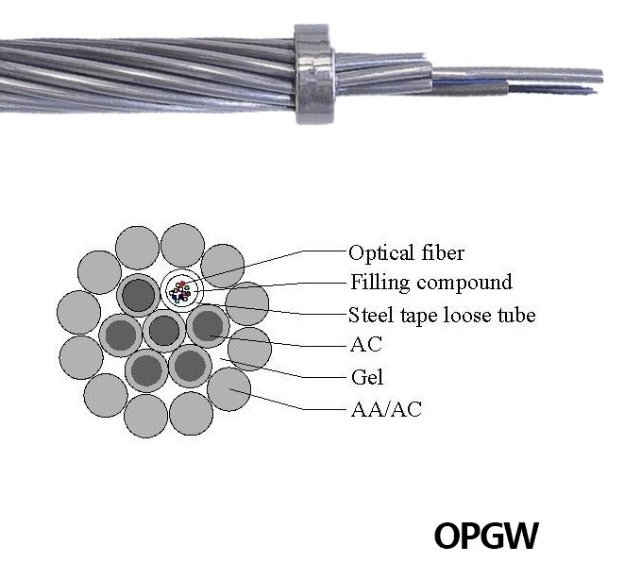

 The structural design of OPGW cables balances mechanical strength, electrical performance, and communication quality, primarily consisting of four core components: Outer Protective Layer: Made of highly conductive aluminum or aluminum alloy stranded wires, it not only possesses excellent corrosion resistance but also effectively conducts short-circuit current, working in conjunction with the grounding system to achieve lightning protection. Central Tube (Fiber Optic Unit): Typically a sealed tube made of stainless steel or aluminum alloy, it is the core barrier protecting the optical fiber, isolating it from external moisture, dust, and other impurities, while also resisting the effects of mechanical compression and temperature changes. Internal Optical Fiber: Primarily single-mode fiber (such as the G.652D model), suitable for long-distance, high-capacity transmission, with an attenuation coefficient as low as below 0.21dB/km; multimode fiber is used for special short-range communication scenarios to meet different application requirements. Mechanical Reinforcing Elements: Employing aluminum-clad steel wire or high-strength steel wire, providing strong tensile strength (rated breaking force up to 280kN), ensuring the optical cable maintains structural stability under harsh conditions such as long spans and strong winds, preventing breakage or excessive stretching.


Working Mechanism and Core Functions of OPGW Optical Cable
Dual Working Principle: Synergistic Operation of Lightning Protection and Communication
The core advantage of OPGW optical cable lies in its "dual-function" working mechanism, where two functions operate independently yet in synergy:
In terms of lightning protection and grounding, OPGW optical cable utilizes the excellent conductivity of its outer metal stranded wires. When a transmission line is struck by lightning, it can quickly divert the lightning current to the ground, preventing direct lightning strikes to the phase wires and causing equipment damage. Its lightning strike failure rate can be reduced by more than 80% compared to traditional solutions.
In terms of communication transmission, the built-in optical fiber unit achieves data transmission through the reflection and refraction of optical signals, unaffected by electromagnetic interference (EMI). Even in the strong electromagnetic environment of high-voltage transmission lines, it can maintain stable communication quality, with a single-core transmission capacity of over 100Gbps. This design achieves physical separation between power grounding and data transmission, ensuring both the safe operation of the power system and the pure transmission of communication signals. Four Core Functions:
Lightning Protection
As the first line of defense against lightning strikes on transmission lines, the OPGW optical cable conducts lightning current to the ground through a grounding system, protecting towers, insulators, and other equipment from damage.
Grounding Continuity
In the event of a circuit fault, the outer metal structure can quickly conduct short-circuit current, reducing the line-to-ground voltage and ensuring the safety of maintenance personnel.
High-Speed Communication
 Supports SCADA (Supervisory Control and Data Acquisition) systems, PMU (Phase Quantity Measurement) synchronization, and other services, enabling real-time data transmission of power grid operating status.
Intelligent Monitoring
Through fiber optic sensing technology, it can monitor parameters such as line temperature, icing, and vibration in real time, providing data support for power grid fault early warning and precise operation and maintenance.

 Types, Advantages, and Application Scenarios of OPGW Optical Cables
Main Type Classification
Based on differences in structure, capacity, and application environment, OPGW optical cables can be classified into several types:

Structure-wise, they can be divided into central tube type (stainless steel tube core) and stranded type (fiber units and metal stranded wires are layered and twisted). The former has a smaller cable diameter and lighter weight, while the latter has more stable mechanical performance.

Fiber capacity-wise, they can be divided into small core count (6-12 cores), medium core count (24-48 cores), and high core count (72-144+ cores) to meet the communication needs of power grids of different sizes.

Application environment-wise, they can be divided into corrosion-resistant type (suitable for coastal salt spray areas) and high-load type (suitable for long spans and strong wind areas) to adapt to diverse geographical conditions.

Core Advantages and Limitations OPGW optical cables offer significant technological advantages
Firstly, their "integrated" design saves costs, eliminating the need for separate communication lines and reducing construction costs by over 30%. Secondly, they boast high reliability; their metallic outer layer allows for stable operation in extreme temperature ranges from -40℃ to +70℃, with a service life exceeding 25 years. They also possess characteristics such as resistance to electromagnetic interference and high bandwidth, making them an ideal communication carrier for smart grids. However, they also have certain limitations, such as higher initial installation costs, the need for power outages in some scenarios, and higher maintenance difficulty compared to underground fiber optic cables. These factors need to be comprehensively considered during project planning. Typical Application Scenarios
OPGW optical cables have been applied in multiple core areas of the power system:
High-voltage and ultra-high-voltage transmission lines (110kV and above), becoming a standard configuration for line lightning protection and communication;
New energy bases (wind power, photovoltaic), supporting remote monitoring and grid-connected dispatch of distributed power generation equipment, such as the Inner Mongolia grassland wind power project achieving millisecond-level transmission of wind turbine data through OPGW;Substation interconnection and cross-regional power grid projects, building a stable backbone communication network;Smart grid construction, providing transmission support for new technologies such as digital twins and 5G power private networks.

Selection, Installation, and Future Trends
Key Selection Parameters
When selecting OPGW optical cables, the following parameters should be given priority: fiber core count requirement, rated tensile strength (RTS), short-circuit current capacity, applicable span length, environmental weather resistance (temperature, corrosion), and tower design constraints to ensure precise matching between the optical cable and the actual application scenario.
Installation and Maintenance Key Points
 The installation process of OPGW optical cables includes route planning, tower compatibility checks, tensioning, splicing testing, and debugging. Tension control (typically not exceeding 80% of the design strength) and bending radius protection (dynamic ≥ 20 times cable diameter, static ≥ 15 times cable diameter) are crucial during construction. For maintenance, it is necessary to regularly test fiber loss using an OTDR (Optical Time Domain Reflectometer) to investigate mechanical damage and lightning strike effects. Simultaneously, a preventative maintenance mechanism should be established to ensure long-term stable system operation.
Future Technology Trends
With the advancement of new power system construction, OPGW optical cable technology is continuously innovating: First, the integration of sensing and communication technologies is developing, such as the State Grid Information & Communication's "anti-icing" project, which utilizes a single fiber core to monitor multiple parameters such as vibration and temperature; second, high capacity is increasing, with high-density designs of 144 cores or more becoming increasingly common; third, material upgrades are being implemented, with the application of corrosion-resistant aluminum alloys and lightweight composite materials improving performance; and fourth, intelligent integration is being pursued, combining with AI monitoring and technologies to create a more intelligent power grid sensing network. Conclusion: The Core Backbone of Power and Communication
Conclusion
OPGW optical cables, with their dual value of "lightning protection + communication," have become a core support for modern power infrastructure. They not only solve the pain point of insufficient communication coverage in traditional power lines, but also drive the transformation of the power grid towards intelligence and efficiency through technological innovation. From new energy bases on the Qinghai Plateau to cross-regional ultra-high-voltage projects, OPGW optical cables act like "invisible arteries," connecting all aspects of energy production and consumption, providing reliable guarantees for global energy transformation and smart grid construction. In the future, with continuous technological upgrades, OPGW optical cables will play a more extensive role, becoming the core backbone of the deep integration of power and communication.
