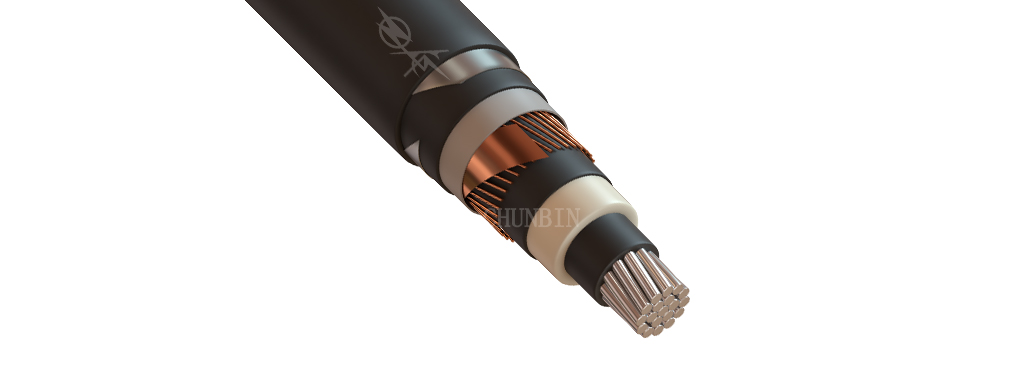

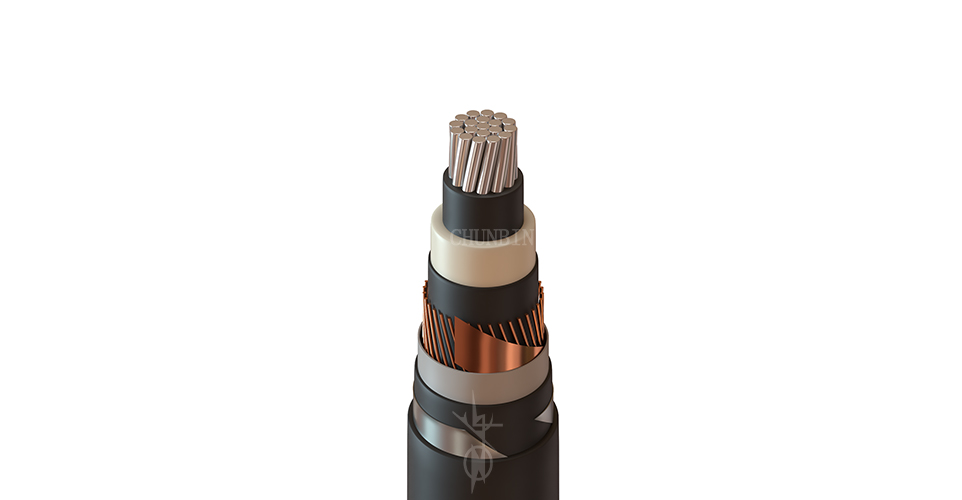

6/10(12)kV XLPE insulation armoured power cable

Introduction

Application
Indoors, cable trunking, outdoors and burried in the ground, for power stations, industry and switchgear as well as for urban supply networks
Structure
Conductor + Semi-conducting Conductor Screen + XLPE Insulation + Semi-conducting Insulation Screen + Metal Screen + Non-woven fabric tape + PVC Sheath
Standard
IEC 60502-2, GB/T 12706.2, NF C33-226
PS
The single core armored cables are used for D.C.system only. If used for A.C.system,the magnetic isolation should be applied on the steel armor wires of non-magnetical materials should be used.

technical parameter

6/10(12)kV Single Core XLPE Insulation Aluminum Wire Armoured Power Cable

6/10(12)kV Three Cores XLPE Insulation Armoured Power Cable

6/10(12)kV Single Core XLPE Insulation Aluminum Wire Armoured Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	Dia. (Thickness) of Armoured	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
						Copper	Aluminum	Copper	Aluminum
			AWA	AWA	AWA	AWA	AWA
mm²	mm	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
35	6.9	3.4	1.6	1.8	26.26	1068	853	0.524	0.868
50	8.1	3.4	1.6	1.8	27.5	1229	937	0.387	0.641
70	9.7	3.4	1.6	1.9	29.36	1505	1084	0.268	0.443
95	11.4	3.4	1.6	1.9	31.1	1802	1224	0.193	0.32
120	12.9	3.4	2	2	33.46	2183	1453	0.153	0.253
150	14.2	3.4	2.0	2.1	35.8	2581	1662	0.124	0.206
185	15.9	3.4	2	2.1	37.56	2952	1836	0.0991	0.164
240	18.3	3.4	2.0	2.2	40.0	3492	2084	0.0754	0.125
300	20.4	3.4	2	2.3	42.06	4212	2380	0.0601	0.1
400	23.6	3.4	2.5	2.4	46.2	5337	2952	0.047	0.0778
500	26.4	3.4	2.5	2.5	50.02	6447	3462	0.0366	0.0605
630	30	3.4	2.5	2.7	54.02	7910	4068	0.0283	0.0469

6/10(12)kV Three Cores XLPE Insulation Armoured Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	Dia. (Thickness) of Armoured		PVC sheath thickness		Overall Dia. (Approx.)		Weight of cable(Approx.)				DC Resistance at 20°C Max
			Dia. (Thickness) of Armoured		PVC sheath thickness		Overall Dia. (Approx.)		Copper		Aluminum		Copper	Aluminum
			STA	SWA	STA	SWA	STA	SWA	STA	SWA	STA	SWA	Copper	Aluminum
mm²	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km	Ω/km	Ω/km
3x35	6.9	3.4	0.5	2.5	2.4	2.5	46.59	49.79	3293	4664	2645	4015	0.524	0.868
3x50	8.1	3.4	0.5	2.5	2.5	2.6	49.37	52.57	3837	5280	2956	4399	0.387	0.641
3x70	9.7	3.4	0.5	2.5	2.6	2.7	52.82	56.02	4599	6142	3362	4905	0.268	0.443
3x95	11.4	3.4	0.5	2.5	2.8	2.9	57.28	60.48	5732	7400	3973	5640	0.193	0.32
3x120	12.9	3.4	0.5	2.5	2.9	3	60.71	63.91	6649	8416	4444	6211	0.153	0.253
3x150	14.2	3.4	0.5	2.5	3	3.1	63.71	66.91	7711	9585	4941	6815	0.124	0.206
3x185	15.9	3.4	0.5	2.5	3.1	3.2	67.57	70.77	8845	10811	5511	7477	0.0991	0.164
3x240	18.3	3.4	0.5	3.15	3.3	3.5	73.54	78.24	10904	13959	6527	9581	0.0754	0.125
3x300	20.4	3.4	0.5	3.15	3.5	3.6	78.47	82.97	12932	16181	7460	10709	0.0601	0.1
