8.7/15(17.5)kV XLPE insulation armoured power cable

Introduction

Application
Indoors, cable trunking, outdoors and burried in the ground, for power stations, industry and switchgear as well as for urban supply networks
Structure
Conductor + Semi-conducting Conductor Screen + XLPE Insulation + Semi-conducting Insulation Screen + Metal Screen + Non-woven fabric tape + PVC Sheath
Standard
IEC 60502-2, GB/T 12706.2, NF C33-226
PS
The single core armored cables are used for D.C.system only. If used for A.C.system,the magnetic isolation should be applied on the steel armor wires of non-magnetical materials should be used.

technical parameter

8.7/15(17.5)kV Single Core XLPE Insulation Aluminum Wire Armoured Power Cable

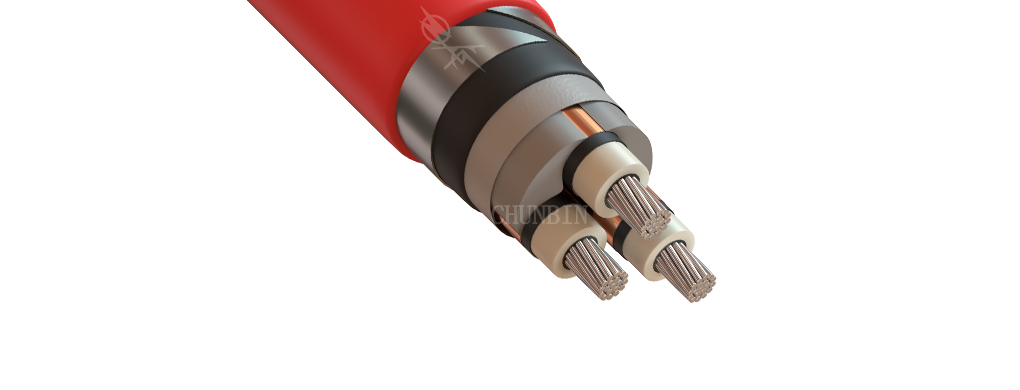

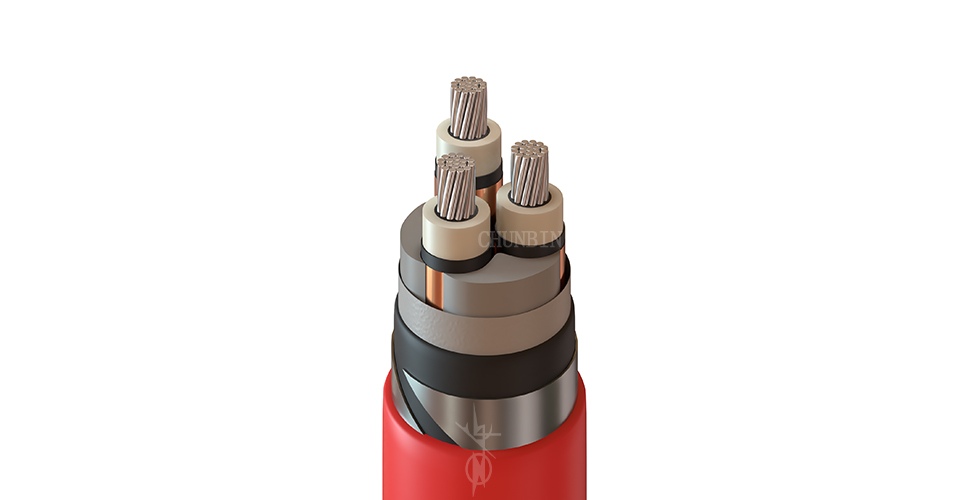

8.7/15(17.5)kV Three Cores XLPE Insulation Armoured Power Cable

8.7/15(17.5)kV Single Core XLPE Insulation Aluminum Wire Armoured Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	Dia. (Thickness) of Armoured	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
						Copper	Aluminum	Copper	Aluminum
			AWA	AWA	AWA	AWA	AWA
mm²	mm	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
35	6.9	4.5	1.6	1.9	28.7	1200	985	0.524	0.868
50	8.1	4.5	1.6	1.9	29.9	1371	1078	0.387	0.641
70	9.7	4.5	1.6	1.9	31.5	1631	1209	0.268	0.443
95	11.4	4.5	2.0	2.0	34.2	2036	1458	0.193	0.32
120	12.9	4.5	2.0	2.1	36.3	2382	1651	0.153	0.253
150	14.2	4.5	2.0	2.1	37.6	2719	1800	0.124	0.206
185	15.9	4.5	2.0	2.2	39.5	3102	1986	0.0991	0.164
240	18.3	4.5	2.0	2.3	42.1	3667	2259	0.0754	0.125
300	20.4	4.5	2.5	2.4	45.4	4545	2713	0.0601	0.1
400	23.6	4.5	2.5	2.5	49.2	5609	3224	0.047	0.0778
500	26.4	4.5	2.5	2.6	52.5	6689	3704	0.0366	0.0605
630	30	4.5	2.5	2.7	56.3	8407	4565	0.0283	0.0469

8.7/15(17.5)kV Three Cores XLPE Insulation Armoured Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	Dia. (Thickness) of Armoured		PVC sheath thickness		Overall Dia. (Approx.)		Weight of cable(Approx.)				DC Resistance at 20°C Max
			Dia. (Thickness) of Armoured		PVC sheath thickness		Overall Dia. (Approx.)		Copper		Aluminum		Copper	Aluminum
			STA	SWA	STA	SWA	STA	SWA	STA	SWA	STA	SWA	Copper	Aluminum
mm²	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km	Ω/km	Ω/km
3x35	6.9	4.5	0.5	2.5	2.6	2.7	51.5	54.7	3707	5222	3059	4574	0.524	0.868
3x50	8.1	4.5	0.5	2.5	2.7	2.8	54.3	57.5	4268	5896	3387	5015	0.387	0.641
3x70	9.7	4.5	0.5	2.5	2.8	2.9	58.4	61.6	5138	6857	3901	5620	0.268	0.443
3x95	11.4	4.5	0.5	2.5	3	3.1	62.4	65.6	6245	8098	4485	6338	0.193	0.32
3x120	12.9	4.5	0.5	2.5	3.1	3.2	65.9	69.1	7184	9139	4979	6934	0.153	0.253
3x150	14.2	4.5	0.5	2.5	3.2	3.3	68.9	72.1	8266	10329	5496	7559	0.124	0.206
3x185	15.9	4.5	0.5	3.15	3.3	3.4	72.7	77.2	9425	12498	6091	9164	0.0991	0.164
3x240	18.3	4.5	0.5	3.15	3.5	3.6	78.7	83.2	11526	14816	7149	10438	0.0754	0.125
3x300	20.4	4.5	0.8	3.15	3.7	3.8	84.8	88.1	14385	17110	8914	11638	0.0601	0.1
