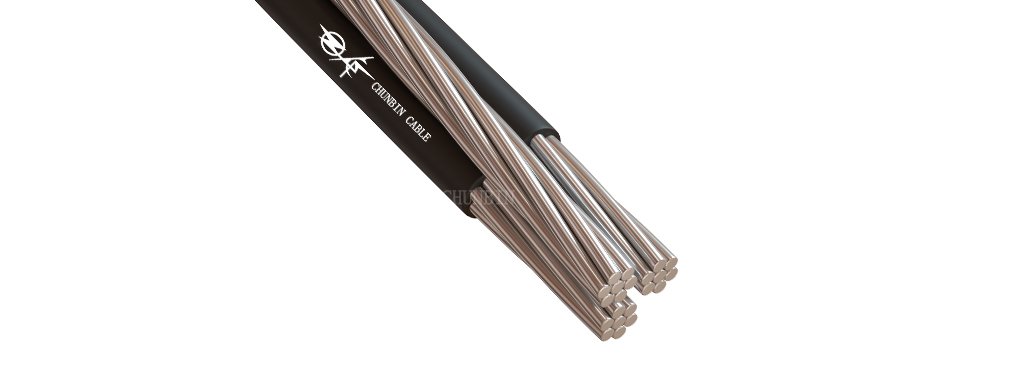

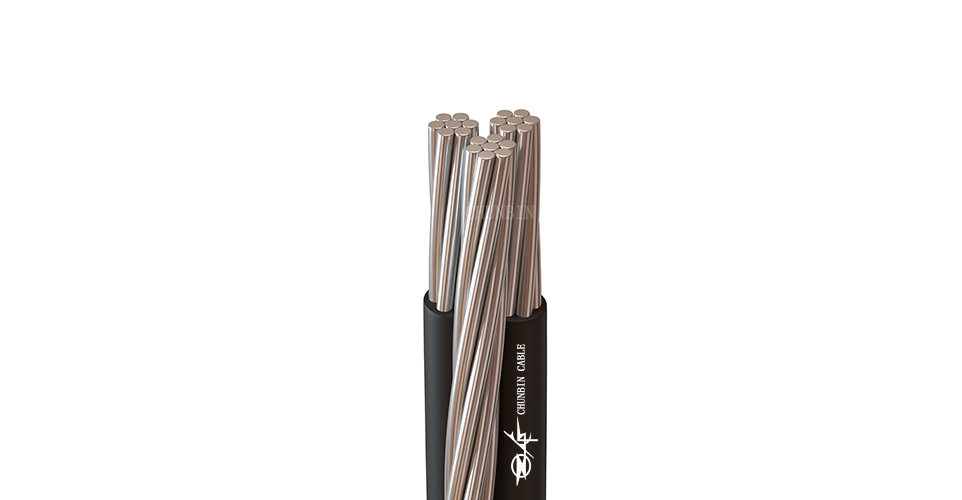

Service Drop Cable (ANSI/ICEA S-76-474)

Service Drop Cable (ANSI/ICEA S-76-474)

Send Email
Whatsapp
Introduction
Application
Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase - to - phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
Description
The conductor consists of a phase conductor and a neutral conductor. The material of the phase conductors is  Aluminum or copper and may be solid, stranded circular compacted or compressed or uncompressed conductor. The neutral conductors are stranded round circular uncompressed aluminum or copper or aluminum-alloy conductor or ACSR or ACSR/AW etc. And the insulating material is black weather or UV-resistant thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE).
Note: Neutral conductors can be insulated or non-insulated.
Specification
● ANSI/ICEA S-76-474 Neutral-Supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600 Volts.
● ASTM B 231 Class AA, A, or B Stranded Aluminum 1350 (Excluding Unilay Compressed)
● ASTM B 400 Compact-Round Stranded Aluminum 1350 Conductors.
● ASTM B 399 Class AA, or A Stranded Aluminum-Alloy 6201 T-81 Conductors.
● ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
● ASTM B 549 For Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced (ACSR/AW)
Technical parameter
ICEA S-76-474
Code Word Phase Conductor Bare Neutral Messenger Approx.  Diameter of Cable Approx. Weight
Size No. of wires Nominal Insulation Thickness Size No. of wires Diameter of Wires
  AWG or Kcmil No. mm AWG or Kcmil No. mm mm kg/km
AAC/XLPE+AAC
Pekingese 6 1 1.14  6.00  7 1.56 11.1 92
Collie 6 7 1.14  6.00  7 1.56 11.5 94
Cocker 6 7 1.52  6.00  7 1.56 12.2 100
Dachshund 4 1 1.14  4.00  7 1.96 13.4 140
Spaniel 4 7 1.14  4.00  7 1.96 13.9 143
Cairn 4 7 1.52  4.00  7 1.96 14.6 150
Doberman 2 7 1.14  2.00  7 2.47 16.9 220
Airedale 1 19 1.52  1.00  7 2.78 19.6 280
Basset 1/0 7 1.52  1/0 7 3.12 21.8 355
Malemute 1/0 19 1.52  1/0 7 3.12 21.6 350
AAC/XLPE+AAAC
Chihuahua 6 1 1.14  30.58  7 1.68 11.4 98
Vizsla 6 7 1.14  30.58  7 1.68 11.8 100
Harrier 4 1 1.14  48.69  7 2.12 13.8 149
Whippet 4 7 1.14  48.69  7 2.12 14.4 154
Schnauzer 2 7 1.14  77.47  7 2.67 17.5 235
Afghan 1/0 7 1.52  123.30  7 3.37 22.5 378
Heeler 1/0 19 1.52  123.30  7 3.37 22.3 375
AAC/XLPE+ACSR
Setter 6 1 1.14  6  6/1 1.68 11.4 109
Shepherd 6 7 1.14  6  6/1 1.68 11.8 112
Retriever 6 7 1.52  6  6/1 1.68 12.6 119
Eskimo 4 1 1.14  4  6/1 2.12 13.8 166
Terrier 4 7 1.14  4  6/1 2.12 14.4 170
Yorkshire 4 7 1.52  4  6/1 2.12 15.1 180
Chow 2 7 1.14  2  6/1 2.67 17.5 262
Labrador 1 19 1.52  1  6/1 3 20.2 339
Bloodhound 1/0 7 1.52  1/0 6/1 3.37 22.5 425
Bull 1/0 19 1.52  1/0 6/1 3.37 22.3 422

Triplex Service Drop - Aluminum Conductors                                           ICEA S-76-474
Code Word Phase Conductor Bare Neutral Messenger Approx.  Diameter of Cable Approx. Weight
Size No. of wires Nominal Insulation Thickness Size No. of wires Diameter of Wires
  AWG or Kcmil No. mm AWG or Kcmil No. mm mm kg/km
AAC/XLPE+AAC
Haiotis 6 1 1.14  6  7 1.56 12.6 148
Pike 6 7 0.76  6  7 1.56 12.1 139
Patella 6 7 1.14  6  7 1.56 13.2 154
Albus 6 7 1.52  6  7 1.56 14.3 170
Fusus 4 1 1.14  4  7 1.96 15 221
Limpet 4 7 1.14  6  7 1.56 14.9 208
Oyster 4 7 1.14  4  7 1.96 15.8 230
Argo 4 7 1.52  4  7 1.96 16.9 249
Clam 2 7 1.14  2  7 2.47 19 347
Thia 2 7 1.52  2  7 2.47 20.1 370
Mussel 2 7 1.14  4  7 1.96 17.9 312
Pyrula 1 7 1.52  1  7 2.78 22.4 465
Hyas 1 19 1.52  1  7 2.78 22.2 450
Snail 1/0 7 1.52  2  7 2.47 23.2 517
Murex 1/0 7 1.52  1/0 7 3.12 24.6 572
Purpura 1/0 19 1.52  1/0 7 3.12 24.4 554
Nassa 2/0 7 1.52  2/0 7 3.5 27.1 706
Trophon 2/0 19 1.52  2/0 7 3.5 26.8 684
Quahog 3/0 7 2.03  3/0 7 3.93 31.3 920
Ione 3/0 19 2.03  3/0 7 3.93 31 892
Melita 3/0 19 1.52  3/0 19 2.39 29.7 845
Coquina 4/0 7 1.52  4/0 7 4.42 33 1082
Tusk 4/0 7 2.03  4/0 7 4.42 34.5 1134
Apus 4/0 19 2.03  4/0 7 4.42 34.1 1098
Portunus 4/0 19 2.03  4/0 19 2.68 34.2 1098
Chiton 266.8 19 2.03  266.8  19 3.01 38.4 1379
Alverno 300 37 2.03  4/0 19 2.68 37.8 1386
Nannynose 336.4 19 2.03  336.4  19 3.38 42.4 1707
AAC/XLPE+AAAC
Minex 6 1 1.14  30.6  7 1.68 12.8 154
Hippa 6 7 1.14  30.6  7 1.68 13.4 160
Artemia 4 1 1.14  30.6  7 1.68 14.4 205
Crad 4 7 1.14  30.6  7 1.68 15.2 214
Prawn 4 1 1.14  48.7  7 2.12 15.3 231
Barnacle 4 7 1.14  48.7  7 2.12 16.1 239
Solaster 2 7 1.14  48.7  7 2.12 18.2 322
Pagurus 2 7 1.52  48.7  7 2.12 19.3 345
Shrimp 2 7 1.14  77.5  7 2.67 19.4 362
Lobster 2 7 1.52  77.5  7 2.67 20.5 385
Sanderab 1/0 7 1.52  77.5  7 2.67 23.6 532
Echinus 1/0 19 1.52  77.5  7 2.67 23.4 514
Gammarus 1/0 7 1.52  123.3  7 3.37 25.1 597
Leda 1/0 19 1.52  123.3  7 3.37 24.9 579
Crayfish 2/0 7 1.52  97.7  7 3 26 655
Sipho 2/0 19 1.52  97.7  7 3 25.7 633
Abalone 2/0 7 1.52  123.3  7 3.37 26.8 691
Spirula 2/0 19 1.52  123.3  7 3.37 26.5 669
Dungenese 2/0 7 1.52  155.4  7 3.78 27.7 736
Cyclops 2/0 19 1.52  155.4  7 3.78 27.4 714
Slug 3/0 7 1.52  123.3  7 3.37 28.6 809
Fulgur 3/0 19 1.52  123.3  7 3.37 28.4 781
Balanus 3/0 19 2.03  123.3  7 3.37 29.8 828
Stonecrab 3/0 7 1.52  195.7  7 4.25 30.5 904
Flustra 3/0 19 1.52  195.7  7 4.25 30.3 884
Crisia 3/0 19 2.03  195.7  7 4.25 31.7 931
Squid 4/0 7 1.52  155.4  7 3.78 31.6 1001
Arca 4/0 19 1.52  155.4  7 3.78 31.3 966
Bugula 4/0 19 2.03  155.4  7 3.78 32.7 1018
Kingcrab 4/0 7 1.52  246.9  7 4.77 33.8 1131
Lepas 4/0 19 1.52  246.9  7 4.77 33.4 1096
Cassis 4/0 19 2.03  246.9  7 4.77 34.9 1147
Cyphoma 4/0 7 1.52  123.3  7 3.37 30.8 957
Mitre 4/0 19 1.52  123.3  7 3.37 30.4 921
Argonaut 336.4 19 2.03  246.9  7 4.77 40.5 1579
Nautilis 336.4 19 2.03  394.5  19 3.66 43.4 1787
AAC/XLPE+ACSR
Paludina 6 1 1.14  6  6/1 1.68 12.8 165
Voluta 6 7 1.14  6  6/1 1.68 13.4 171
Bolma 6 7 1.52  6  6/1 1.68 14.5 188
Scallop 4 1 1.14  6  6/1 1.68 14.4 217
Strombus 4 7 1.14  6  6/1 1.68 15.1 225
Carnea 4 7 1.52  6  6/1 1.68 16.2 244
Whelk 4 1 1.14  4  6/1 2.12 15.3 249
Periwinkle 4 7 1.14  4  6/1 2.12 16.1 257
Calma 4 7 1.52  4  6/1 2.12 17.2 277
Cockle 2 7 1.14  4  6/1 2.12 18.2 340
Gebia 2 7 1.52  4  6/1 2.12 19.3 363
Conch 2 7 1.14  2  6/1 2.67 19.4 391
Uca 2 7 1.52  2  6/1 2.67 20.5 414
Vermeths 1 7 1.52  1  6/1 3 22.9 520
Atya 1 19 1.52  1  6/1 3 22.6 506
Janthina 1/0 7 1.52  2  6/1 2.67 23.6 561
Ranella 1/0 19 1.52  2  6/1 2.67 23.4 543
Neritina 1/0 7 1.52  1/0 6/1 3.37 25.1 642
Cenia 1/0 19 1.52  1/0 6/1 3.37 24.9 624
Cavolinia 2/0 7 1.52  1  6/1 3 26 691
Clio 2/0 19 1.52  1  6/1 3 25.7 669
Runcina 2/0 7 1.52  2/0 6/1 3.78 27.7 794
Triton 2/0 19 1.52  2/0 6/1 3.78 27.4 772
Sanddollar 3/0 7 1.52  1/0 6/1 3.37 28.6 854
Aega 3/0 19 1.52  1/0 6/1 3.37 28.4 827
Pisa 3/0 19 2.03  1/0 6/1 3.37 29.8 874
Cherrystone 3/0 7 1.52  3/0 6/1 4.25 30.5 983
Mursia 3/0 19 1.52  3/0 6/1 4.25 30.3 956
Mysis 3/0 19 2.03  3/0 6/1 4.25 31.7 1003
Cuttlefish 4/0 7 1.52  2/0 6/1 3.78 31.7 1059
Cerapus 4/0 19 1.52  2/0 6/1 3.78 31.3 1024
Nepatus 4/0 19 2.03  2/0 6/1 3.78 32.7 1075
Razor 4/0 7 1.52  4/0 6/1 4.77 33.8 1222
Zuzara 4/0 19 1.52  4/0 6/1 4.77 33.4 1187
Alima 4/0 19 2.03  4/0 6/1 4.77 34.9 1238
Callista 266.8 19 2.03  3/0 6/1 4.25 36.7 1350
Dosinia 266.8 19 2.03  267  6/1 3.09 38.7 1438
Cowry 336.4 19 2.03  4/0 6/1 4.77 40.5 1670
Limpet 336.4 19 2.03  336  6/1 3.47 42.7 1782

Quadruplex Service Drop - Aluminum Conductors                                             ICEA S-76-474
Code Word Phase Conductor Bare Neutral Messenger Approx.  Diameter of Cable Approx. Weight
Size No. of wires Nominal Insulation Thickness Size No. of wires Diameter of Wires
  AWG or Kcmil No. mm AWG or Kcmil No. mm mm kg/km
AAC/XLPE+AAC
Quarter 6 1 1.14  6  7 1.56 14.4 203
Clydesdate 4 1 1.14  4  7 1.96 17.1 302
Pinto 4 7 1.14  4  7 1.96 18.1 315
Mustang 2 7 1.14  2  7 2.47 21.7 474
Shire 1 19 1.52  1  7 2.78 25.4 616
Libyan 1/0 7 1.52  1/0 7 3.12 28.2 784
Criollo 1/0 19 1.52  1/0 7 3.12 27.9 757
Orloff 2/0 7 1.52  2/0 7 3.5 30.9 965
Percheron 2/0 19 1.52  2/0 7 3.5 30.6 931
Mongolian 3/0 7 1.52  3/0 7 3.93 34.1 1190
Hanoverian 3/0 19 1.52  3/0 19 2.39 33.8 1148
Singlefoot 4/0 7 1.52  4/0 7 4.42 37.6 1474
Oldenburg 4/0 19 1.52  4/0 19 2.68 37.2 1421
Lippizaner 336.4 19 2.03  336.4  19 3.38 48.3 2322
AAC/XLPE+AAAC
Bay 6 1 1.14  30.58  7 1.68 14.7 209
French-Coach 6 7 1.14  30.58  7 1.68 15.4 218
German-Coach 4 1 1.14  48.69  7 2.12 17.4 312
Arabian 4 7 1.14  48.69  7 2.12 18.4 324
Belgian 2 7 1.14  77.47  7 2.67 22 489
Viatka 1/0 7 1.52  77.47  7 2.67 27.4 743
Thoroughbred 2/0 19 1.52  155.40  7 3.78 31.1 962
Celtic 2/0 7 1.52  123.30  7 3.37 30.7 950
Norman 2/0 19 1.52  123.30  7 3.37 30.3 917
Donkey 3/0 7 1.52  123.30  7 3.37 33 1126
Burro 3/0 19 1.52  123.30  7 3.37 32.7 1085
Dobbin 3/0 7 1.52  195.70  7 4.25 34.6 1229
Trotter 3/0 19 1.52  195.70  7 4.25 34.3 1188
Roan 4/0 7 1.52  123.30  7 3.37 35.7 1348
Gotland 4/0 19 1.52  123.30  7 3.37 35.2 1295
Bali 4/0 7 1.52  155.40  7 3.78 36.5 1393
Skyros 4/0 19 1.52  155.40  7 3.78 36 1340
Pony 4/0 7 1.52  246.90  7 4.77 38.3 1522
Walking 4/0 19 1.52  246.90  7 4.77 37.8 1470
Exmoor 336.4 19 2.03  246.90  19 2.89 46.8 2193
Breton 336.4 19 2.03  394.50  19 3.66 49.1 2402
AAC/XLPE+ACSR
Morochuca 6 1 1.14  6.00  6/1 1.68 14.7 221
Chola 6 7 1.14  6.00  6/1 1.68 15.4 229
Morgan 4 1 1.14  4.00  6/1 2.12 17.4 330
Hackney 4 7 1.14  4.00  6/1 2.12 18.4 342
Palomino 2 7 1.14  2.00  6/1 2.67 22 518
Albino 1 19 1.52  1.00  6/1 3 25.8 672
Standardbred 1/0 7 1.52  1/0 6/1 3.37 28.6 854
Costena 1/0 19 1.52  1/0 6/1 3.37 28.3 827
Chicoteagues 2/0 7 1.52  2/0 6/1 3.78 31.5 1053
Grullo 2/0 19 1.52  2/0 6/1 3.78 31.1 1022
Mare 3/0 7 1.52  3/0 6/1 4.25 34.6 1301
Suffolk 3/0 19 1.52  3/0 6/1 4.25 34.3 1260
Stallion 4/0 7 1.52  4/0 6/1 4.77 38.3 1614
Appaloosa 4/0 19 1.52  4/0 6/1 4.77 37.8 1561
Gelding 336.4 19 2.03  4/0 6/1 4.77 46.7 2285
Bronco 336.4 19 2.03  336.40  18 / 1 3.47 48.6 2396
Factory
Products Application
Products Application
Related Products
11kV MV Cable Overhead Bundled Cable
PVC Covered Conductor (BS 6485)
Environmental Protection
Safety
High Performance
Standard
GB/T 14049, Q/GDW 13237.1
Packing Details
Wooden PalletWooded Drum/as customers requirement
10kV Medium Voltage Light Overhead Bundled Cable
ACSR-OC/ACSR/AW-OC Cable (KS C 3138)
Environmental Protection
Safety
High Performance
Standard
GB/T 14049, Q/GDW 13237.1
Packing Details
Wooden PalletWooded Drum/as customers requirement
12kV Medium Voltage Overhead Bundled Cable
Aerial Insulated Cable (IEC 60502-2 / GB/T14049)
Environmental Protection
Safety
High Performance
Standard
GB/T 14049, Q/GDW 13237.1
Packing Details
Wooden PalletWooded Drum/as customers requirement
More other recommendations
Bare Conductor MV Cable
Fill in you have to consult
We will contact you as soon as we receive the inquiry and ensure the security of your information.
Name*
Email*
Phone
Country
Message*
Email
Products
Bare Conductor
Overhead Insulated Cable
Power Cable
Concentric Cable
Control Cable
Buliding Wire
Rubber Cable
Other Cable
CopyRight © 1989 Chunbin Cable Co., Ltd.
Technical support ：Coverweb
Whatsapp: 18739062099
E-mail:info@cbcables.com
Fill in you have to consult
We will contact you as soon as we receive the inquiry and ensure the security of your information.
Name*
Email*
Phone
Country
Message*
