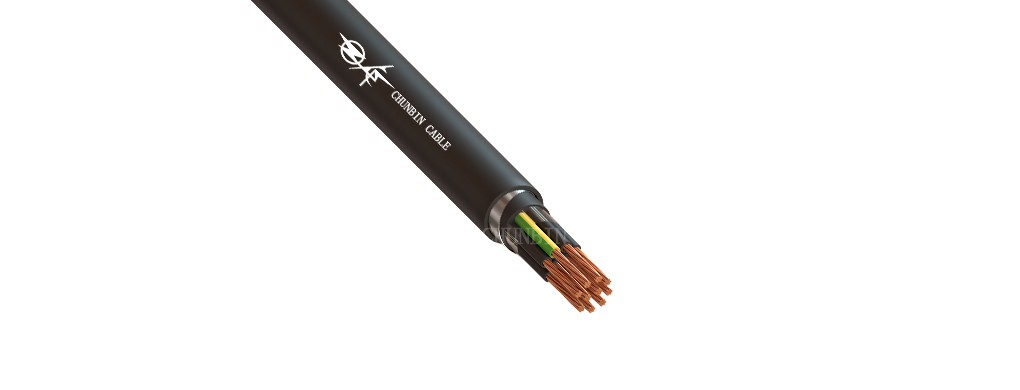

| Type KVV22,ZR-KVV22450/750 Copper Conductor PVC Insulated and Sheathed Control Cable with steel Tape armrecur | ||||||||
| Croes×Nom. cross-sectional Area mm² |
Kind of conductor |
Nom.thickness of Insulation mn |
Copper layers ×Thickness mm |
Nom.thickness of Sheath mm |
Pitch Diameter mm | Resistance of insulation at 70℃ MQ ·km |
max D.C. Resistance of at 20℃ Ω ·km |
|
| min. | max. | |||||||
| 4×2.5 | 1 | 0.8 | 2×0.2 | 1.5 | 13.4 | 16.1 | 0.010 | 7.41 |
| 4×4 | 1 | 0.8 | 2×0.2 | 1.5 | 14.4 | 17.4 | 0.0085 | 4.61 |
| 4×6 | 1 | 0.8 | 2×0.2 | 1.5 | 15.6 | 18.8 | 0.0070 | 3.08 |
| 4 ×10 | 2 | 1.0 | 2×0.2 | 1.7 | 19.4 | 23.5 | 0.0065 | 1.83 |
| 5×2.5 | 1 | 0.8 | 2×0.2 | 1.5 | 14.3 | 17.2 | 0.010 | 7.41 |
| 5×4 | 1 | 0.8 | 2×0.2 | 1.5 | 15.4 | 18.6 | 0.0085 | 4.61 |
| 5×6 | 1 | 0.8 | 2×0.2 | 1.7 | 16.7 | 20.2 | 0.0070 | 3.08 |
| 5×10 | 2 | 1.0 | 2×0.2 | 1.7 | 21.0 | 25.4 | 0.0065 | 1.83 |
| 7×0.75 | 1 | 0.6 | 2×0.2 | 1.5 | 11.8 | 14.2 | 0.012 | 24.5 |
| 7× 1.0 | 1 | 0.6 | 2×0.2 | 1.5 | 12.2 | 14.7 | 0.011 | 18.1 |
| 7×1 .5 | 1 | 0.7 | 2×0.2 | 1.5 | I3.5 | 16.3 | 0.01 | 12.1 |
| 7 ×2.5 | 1 | 0.8 | 2×0.2 | 1.5 | 15.2 | 18.4 | 0.010 | 7.41 |
| 7×4 | 1 | 0.8 | 2×0.2 | 1.5 | 16.5 | 20.0 | 0.0085 | 4.61 |
| 7×6 | 1 | 0.8 | 2×0.2 | 1.7 | 18.0 | 21.7 | 0.0070 | 3.08 |
| 7× 10 | 2 | 1.0 | 2×0.2 | 1.7 | 22.7 | 27.4 | 0.0065 | 1.83 |
| 8 × 0.75 | 1 | 0.6 | 2×0.2 | 1.5 | 12.7 | 15.3 | 0.012 | 24.5 |
| 8 × 1.0 | 1 | 0.6 | 2×0.2 | 1.5 | 13.2 | 15.9 | 0.011 | 18.1 |
| 8 × 1.5 | 1 | 0.7 | 2×0.2 | 1.5 | 14.7 | 17.7 | 0.011 | 12.1 |
| 8 ×2.5 | 1 | 0.8 | 2×0.2 | 1.5 | 16.7 | 20.1 | 0.010 | 7.41 |
| 8 × 4 | 1 | 0.8 | 2×0.2 | 1.7 | T8.2 | 21.9 | 0.0085 | 4.61 |
| 8 × 6 | 1 | 0.8 | 2×0.2 | 1.7 | 20.2 | 24.4 | 0.0070 | 3.08 |
| 8×10 | 2 | 1.0 | 2×0.2 | 1.7 | 25.2 | 30.1 | 0.0065 | 1.83 |
| 10x 0.75 | 1 | 0.6 | 2×0.2 | 1.5 | 13.8 | 16.7 | 0.012 | 24.5 |
| 10× 1.0 | 1 | 0.6 | 2×0.2 | 1.5 | 14.4 | 17.4 | 0.011 | 18.1 |
| 10× 1.5 | 1 | 0.7 | 2×0.2 | 1.5 | 16.1 | 19.5 | 0.011 | 12.1 |
| 10×2.5 | 1 | 0.8 | 2×0.2 | 1.7 | 18.8 | 22. | 0.010 | 7.41 |
| 10×4 | 1 | 0.8 | 2×0.2 | 1.7 | 20.5 | 24.8 | 0.0085 | 4.61 |
| 10×6 | 1 | 0.8 | 2×0.2 | 1.7 | 22.5 | 27.1 | 0.0070 | 3.08 |
| 10×10 | 2 | 1.0 | 2×0.2 | 2.0 | 29.2 | 35.3 | 0.0065 | 7.83 |
| 12× 0.75 | 1 | 0.6 | 2×0.2 | 1.5 | 14.1 | 17.1 | 0.012 | 24.5 |
| 12 ×1.0 | 1 | 0.6 | 2×0.2 | 1.5 | 14.8 | 17.8 | 0.01 | 18.1 |
| 12 ×1.5 | 1 | 0.7 | 2×0.2 | 1.5 | 16.6 | 20.0 | 0.01 | 12.1 |
| 12 × 2.5 | 1 | (.8 | 2×0.2 | 1.7 | 19.3 | 23.4 | 0.010 | 7.4 |
| 12 × 4 | 1 | 0.8 | 2×0.2 | 1.7 | 21.1 | 25.5 | 0.0085 | 4.61 |
| 12 ×6 | 1 | 0.8 | 2×0.2 | 1.7 | 23.1 | 27.9 | 0.0070 | 3.08 |
| 14× 0.75 | 1 | 0.6 | 2×0.2 | 1.5 | 14.7 | 17.7 | 0.012 | 24.5 |
| 14 ×1.0 | 1 | 0.6 | 2×0.2 | 1.5 | 15.3 | 18.5 | 0.01 | 18.1 |
| 14 ×1.5 | 1 | 0.7 | 2×0.2 | 1.7 | 17.2 | 20.8 | 0.011 | 12.1 |
| 14 × 2.5 | 1 | 0.8 | 2×0.2 | 1.7 | 20.1 | 24.3 | 0.010 | 7.41 |
| 14 × 4 | 1 | 0.8 | 2×0.2 | 1.7 | 22.0 | 26.6 | 0.0085 | 4.61 |
| 14 ×6 | 1 | 0.8 | 2×0.2 | 1.7 | 24.3 | 29.2 | 0.0070 | 3.08 |
| 16× 0.75 | 1 | 0.6 | 2×0.2 | 1.5 | 15.3 | 18.5 | 0.012 | 24.5 |
| 16 ×1.0 | 1 | 0.6 | 2×0.2 | 1.5 | 16.0 | 19.3 | 0.011 | 18 |
| 16×1.5 | 1 | 0.7 | 2×0.2 | 1.7 | 18.0 | 21.7 | 0.011 | 12.1 |
| 16 × 2.5 | 1 | 0.8 | 2×0.2 | 1.7 | 21.1 | 25.5 | 0.010 | 7.41 |
| 19×0.75 | 1 | 0.6 | 2×0.2 | 1.5 | 15.9 | 19.2 | 0.012 | 24.5 |
| 19×1.0 | 1 | 0.6 | 2×0.2 | 1.5 | L6.6 | 20. | 0.011 | 18.1 |
| 19×1.5 | 1 | 0.7 | 2×0.2 | 1.7 | 19.2 | 23.1 | 0.011 | 12.1 |
| 19×2.5 | 1 | 0.8 | 2×0.2 | 1.7 | 22.0 | 26.6 | 0.010 | 7.41 |
| 24× 0.75 | 1 | 0.6 | 2×0.2 | 1.7 | 18.0 | 21.7 | 0.012 | 24.5 |
| 24 ×1.0 | 1 | 0.6 | 2×0.2 | 1.7 | 19.2 | 23.2 | 0.011 | 18.1 |
| 24 ×1.5 | 1 | 0.7 | 2×0.2 | 1.7 | 21.8 | 26.3 | 0.011 | 12.1 |
| 24 × 2.5 | 1 | 0.8 | 2×0.2 | 1.7 | 25.6 | 31.0 | 0.010 | 7.41 |
| 27×0.75 | 1 | 0.6 | 2×0.2 | 1.7 | 18.7 | 22.5 | 0.012 | 24.5 |
| 27×1.0 | 1 | 0.6 | 2×0.2 | 1.7 | I9.5 | 23.6 | 0.011 | 18.1 |
| 27×1.5 | 1 | 0.7 | 2×0.2 | 1.7 | 22.2 | 26.8 | 0.011 | 12.1 |
| 27×2.5 | 1 | 0.8 | 2×0.2 | 1.7 | 26.1 | 31.6 | 0.010 | 7.41 |
| 30×0.75 | 1 | 0.6 | 2×0.2 | 1.7 | 9.2 | 23.2 | 0.012 | 24.5 |
| 30×1.0 | 1 | 0.6 | 2×0.2 | 1.7 | 20.1 | 24.3 | 0.011 | 18.1 |
| 30×1.5 | 1 | 0.7 | 2×0.2 | 1.7 | 22.9 | 27.6 | 0.011 | 12.1 |
| 30×2.5 | 1 | 0.8 | 2×0.2 | 1.7 | 27.0 | 32.6 | 0.010 | 7.41 |
| 37×0.75 | 1 | 0.6 | 2×0.2 | 1.7 | 20.4 | 24.7 | 0.012 | 24.5 |
| 37×1.0 | 1 | 0.6 | 2×0.2 | 1.7 | 21.4 | 25.9 | 0.011 | 18.1 |
| 37×1.5 | 1 | 0.7 | 2×0.2 | 1.7 | 24.4 | 29.5 | 0.011 | 12.1 |
| 37×2.5 | 1 | 0.8 | 2×0.2 | 2.0 | 29.4 | 35.6 | 0.010 | 7.41 |
| 44×0.75 | 1 | 0.6 | 2×0.2 | 1.7 | 22.5 | 27.1 | 0.012 | 24.5 |
| 44×1.0 | 1 | 0.6 | 2×0.2 | 1.7 | 23.6 | 28.3 | 0.011 | 18.1 |
| 44×1.5 | 1 | 0. | 2×0.2 | 2.0 | 28.0 | 33.9 | 0.011 | 12.1 |
| 44×2.5 | 1 | 0.8 | 2×0.5 | 2.2 | 33.0 | 39.9 | 0.010 | 7.41 |
| 48×0.75 | 1 | 0.6 | 2×0.2 | 1.7 | 22.8 | 27.5 | 0.012 | 24.5 |
| 48×1.0 | 1 | 0.6 | 2×0.2 | 1.7 | 24.0 | 28.9 | 0.011 | 18.1 |
| 48×1.5 | 1 | 0.7 | 2×0.2 | 2.0 | 28.4 | 34.4 | 0.011 | 12.1 |
| 48×2.5 | 1 | 0.8 | 2×0.5 | 2.2 | 33.5 | 40.5 | 0.010 | 7.41 |
| 52×0.75 | 1 | 0.6 | 2×0.2 | 1.7 | 23.3 | 28.2 | 0.012 | 24.5 |
| 52×1.0 | 1 | 0.6 | 2×0.2 | 1.7 | 24.5 | 29.6 | 0.011 | 18.1 |
| 52×1.5 | 1 | 0.7 | 2×0.2 | 2.0 | 29.1 | 35.2 | 0.01 | 12.1 |
| 52×2.5 | 1 | 0.8 | 2×0.5 | 2.2 | 35.5 | 42.9 | 0.010 | 7.41 |
| 61×0.75 | 1 | 0.6 | 2×0.2 | 1.7 | 24.5 | 29.6 | 0.012 | 24.5 |
| 61×1.0 | 1 | 0.6 | 2×0.2 | 1.7 | 26.2 | 31.7 | 0.011 | 18.1 |
| 61×1.5 | 1 | 0.7 | 2×0.5 | 2.0 | 30.7 | 37. | 0.011 | 12.1 |
| 61×2.5 | 1 | 0.8 | 2×0.5 | 2.2 | 37.4 | 45.2 | 0.010 | 7.41 |
