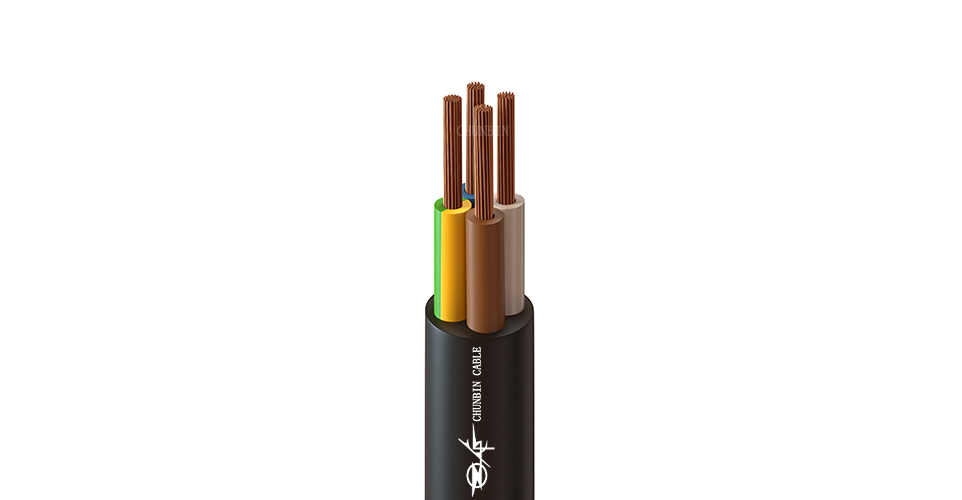

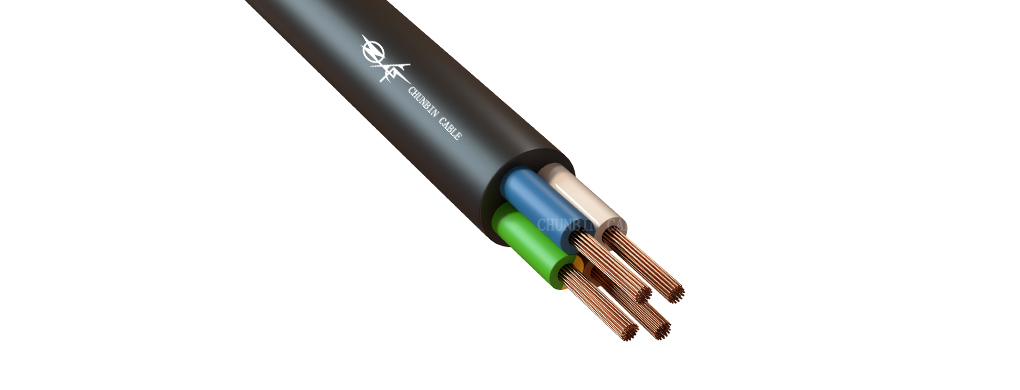

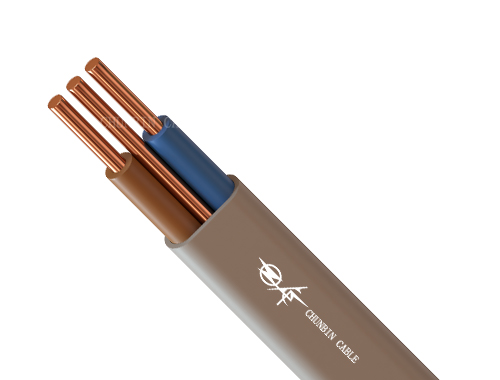

H05VV-F

Introduction

Application:
Insulated conductor is used for laying in electric - installation tubes, under and on plaster installation in dry rooms and in closed installation conduits. Direct laying in cable guides is not permitted. Also applied for internal wiring of distribution and switching boxes equipment.
Construction:
1.Conductor: 1. Copper, class 1, solid conductors
2. Insulation: Polyvinyl chloride PVC
Standards: IEC60227-3

Technical parameter

IEC 60227-3

H05VV-F IEC 60227-3
Conductor		Insulation Thickness	Overall Diameter		Approx.weight	Max.D.C.Resistance of conductor at 20 ℃	Allowable Ampacities
			Min	Max
mm2	Class of Conductor	mm	mm	mm	kg/km	Ω/km	A
1.5	2	0.7	2.7	3.3	22	12.1	18
2.5	2	0.8	3.3	4	35	7.41	25
4	2	0.8	3.8	4.6	50	4.61	33
6	2	0.8	4.3	5.2	70	3.08	42
10	2	1	5.6	6.7	112	1.83	58
16	2	1	6.4	7.8	169	1.15	78
25	2	1.2	8.1	9.7	262	0.727	105
35	2	1.2	9	10.9	357	0.524	130
50	2	1.4	10.6	12.8	497	0.387	155
70	2	1.4	12.1	14.6	675	0.268	200
95	2	1.6	14.1	17.1	936	0.193	250
120	2	1.6	15.6	18.8	1161	0.153	290
150	2	1.8	17.3	20.9	1444	0.124	335
185	2	2	19.3	23.3	1801	0.0991	390
240	2	2.2	22	26.6	2354	0.0754	470
300	2	2.4	24.5	29.6	2887	0.0601	240
400	2	2.6	27.5	33.2	3825	0.047	635

Section No.×mm²	Class of Conductor	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Diameter (mm)	Cable Weight (kg/km)	Electrical Resistance DC.20℃（Ω/km）
H03VV-F 300/300V
3×0.5	5	0.5	0.6	6.3	49	39
2×0.5	5	0.5	0.6	5.9	39	39
2×0.75	5	0.5	0.6	6.3	46	26
3×0.75	5	0.5	0.6	6.7	60	26
H05VV-F 300/500V
2×0.75	5	0.6	0.8	7.2	49	26
2×1	5	0.6	0.8	7.5	56	19.5
2×1.5	5	0.7	0.8	8.6	74	13.3
2×2.5	5	0.8	1	10.6	113	7.98
3×0.75	5	0.6	0.8	7.6	61	26
3×1	5	0.6	0.8	8	71	19.5
3×1.5	5	0.7	0.9	9.4	99	13.3
3×2.5	5	0.8	1.1	11.4	150	7.98
4×0.75	5	0.6	0.8	8.3	75	26
4×1	5	0.6	0.9	9	91	19.5
4×1.5	5	0.7	1	10.5	127	13.3
4×2.5	5	0.8	1.1	12.5	187	7.98
5×0.75	5	0.6	0.9	9.3	93	26
5×1	5	0.6	0.9	9.8	109	19.5
5×1.5	5	0.7	1.1	11.6	157	13.3
5×2.5		0.8	1.2	13.9	231	7.98
